Cylinder



ANSI type cylinders


  • Round cylinder for ANSI type of mortise locks.
  • Cylinder housing made of hardened steel
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Round cylinder for ANSI type of mortise and rim locks
  • Cylinder housing made of hardened steel.
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Round cylinder for ANSI type of mortise locks
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Round cylinder for ANSI type of mortise and rim locks
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Key-In-Knob cylinder
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Key-In-Knob cylinder
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Key-In-Knob cylinder
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Key-In-Knob cylinder
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL, and ABLOY PROTEC2
  • Several alternative finishes


  • Key-In-Knob cylinder
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Double cylinder for tubular deadbolt locks
  • Is operated outside and inside by a key
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Cylinder with thumbturn for tubular deadbolt locks
  • Is operated outside by a key and inside by the thumbturn
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Cylinder with lockable thumbturn for tubular deadbolt locks
  • Is operated outside by a key and inside by the thumbturn. The thumbturn can be locked by a key
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes



Europrofile cylinders


  • Single Europrofile DIN cylinder with adjustable length (5 mm steps)
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes
  • In "RELATED PRODUCTS" section
  • CY331 hardened single cylinder


  • Double Europrofile DIN cylinder with adjustable length (5 mm steps)
  • Is operated outside and inside by a key
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes
  • In "RELATED PRODUCTS" section
  • CY332 hardened double cylinder


  • Europrofile DIN cylinder with thumbturn and with adjustable length (5 mm steps)
  • Is operated outside by a key and inside the door by the thumbturn
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes
  • In "RELATED PRODUCTS" section
  • CY333 hardened cylinder-thumbturn


  • Single Europrofile DIN cylinder with hardened steel housing and adjustable length (5 mm steps)
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Double Europrofile DIN cylinder with hardened steel housing and adjustable length (5 mm steps)
  • Is operated outside and inside by a key
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes


  • Europrofile DIN cylinder with thumbturn, with hardened steel housing and adjustable length (5 mm steps)
  • Is operated outside by a key and inside the door by the thumbturn
  • Cylinder is available with cylinder system ABLOY PROTEC, ABLOY NOVEL and ABLOY PROTEC2
  • Several alternative finishes

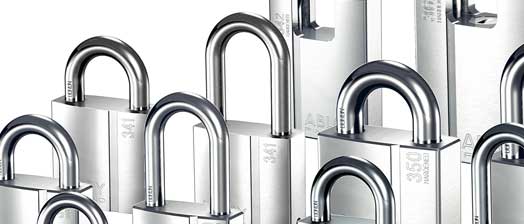

 Padlock


Classic Series




APPLICATIONS:
- where maximum security is needed

DETAILS:
- EN12320 grade 6
- shackle length 25mm
- key removable in locked position
- can be master-keyed with door cylinders
- cylinder is available with cylinder systems ABLOY PROTEC, ABLOY PROTEC2 and ABLOY SENTRY




APPLICATIONS:
- containers, train wagons, trucks, warehouses etc.

DETAILS:
- EN12320 grade 5
- shackle lengths 25mm and 50mm
- key removable in locked position
- can be master-keyed with door cylinders
- cylinder is available with cylinder systems ABLOY CLASSIC, ABLOY PROTEC, ABLOY PROTEC2 and ABLOY SENTRY




APPLICATIONS:
- heavy sliding doors, train wagons, trucks, warehouses etc.

DETAILS:
- EN12320 grade 4
- shackle length 25mm
- key removable in locked position
- can be master-keyed with door cylinders
- cylinder is available with cylinder systems ABLOY CLASSIC, ABLOY PROTEC, ABLOY PROTEC2 and ABLOY SENTRY
- In "RELATED PRODUCTS" section
- PL340 same EN12320 grade 4




APPLICATIONS:
- storage doors, gates, boats, protective bars, roller-shutter doors etc.

DETAILS:
- EN12320 grade 3
- shackle lengths 25mm and 50mm
- key removable in locked position
- can be master-keyed with door cylinders
- cylinder is available with cylinder systems ABLOY CLASSIC, ABLOY PROTEC, ABLOY PROTEC2 and ABLOY SENTRY
- In "RELATED PRODUCTS" section
- PL330 same EN12320 grade 3




APPLICATIONS:
- construction equipment, remote storage areas, roller-shutter doors, warehouses etc.

DETAILS:
- EN12320 grade 4
- shackle lengths 25mm and 50mm
- key removable in locked position
- cylinder is available with cylinder systems ABLOY CLASSIC, ABLOY PROTEC, ABLOY PROTEC2 and ABLOY SENTRY
- In "RELATED PRODUCTS" section
- PL342 same EN12320 grade 4





APPLICATIONS:
- storage doors, motorcycles, gates, trailers, power station switches etc.

DETAILS:
- EN12320 grade 3
- shackle lengths 25mm, 50mm and 100mm (100mm no grading)
- several shackle material options
- key removable in locked position
- can be master-keyed with door cylinders
- cylinder is available with cylinder systems ABLOY CLASSIC, ABLOY PROTEC, ABLOY PROTEC2 and ABLOY SENTRY
- In "RELATED PRODUCTS" section
- PL341 same EN12320 grade 3




APPLICATIONS:
- storage doors, motorcycles, gates, trailers etc.

DETAILS:
- shackle lengths 20mm and 50mm
- key removable in locked position
- can be master-keyed with door cylinders
- cylinder is available with cylinder systems ABLOY CLASSIC, ABLOY PROTEC, ABLOY PROTEC2 and ABLOY SENTRY




APPLICATIONS:
- cash boxes, tool boxes, storage cabins, light machinery, lockers etc.

DETAILS:
- EN12320 grade 2
- shackle lengths 20 mm and 50 mm
- key removable in locked position
- cylinder is available wiht cylinder system ABLOY CLASSIC




DETAILS:
- for right-handed doors
- EN12320 grade 3
- shackle hole 12 mm
- In "RELATED PRODUCTS" section
- PL202 for left-handed doors




DETAILS:
- for right-handed doors
- EN12320 grade 4
- shackle hole 18 mm
- In "RELATED PRODUCTS" section
- PL203 for left-handed doors


DETAILS:
- for left-handed doors
- EN12320 grade 3
- shackle hole 12 mm
- In "RELATED PRODUCTS" section
- PL200 for right-handed doors




DETAILS:
- for left-handed doors
- EN12320 grade 4
- shackle hole 18 mm
- In "RELATED PRODUCTS" section
- PL201 for right-handed doors
